Standard Type S31603 Annealed Sus 314 Mid Hard Skin Pass JIS Standard Steel Coil
|
|
Dettagli:
Termini di pagamento e spedizione:
|
Descrizione di prodotto dettagliata
| Applicazione: | Industria | Misurare: | 0.15*300 mm |
|---|---|---|---|
| Forma: | striscia/stagnola | Superficie: | Luminoso e liscio |
| Colore: | Bianco argentato | Caratteristica: | Alta efficienza |
| Standard: | ASTM, BACCANO |

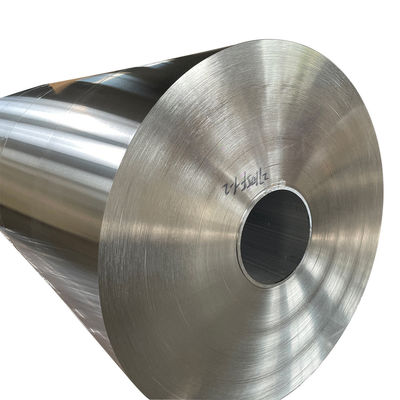

Standard Type S31603 Annealed Sus 314 Mid Hard Skin Pass JIS Standard Steel Coil
Production steel category
301/304/316/409L/410L/430/316L/304L/409/310S/321
200 series: 201,202,202Cu,204Cu,
300 series: 301,303/Cu,304/L/H,304Cu,305,309/S,310/S,316/L/H/Ti,321/H,347/H,330,
400 series: 409/L,410,416/F,420/F,430,431,440C,441,444,446,
600 series: 13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/D,
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760,2304,LDX2101.LDX2404,LDX4404,904L
Others: 254SMo,253Ma,F15,Invar36,1J22,N4,N6 etc
Chemical composition(JIS-G4305/4312) Unit:%
| Steel category | C | Si | Mn | P | S | Cr | Ni | Mo | Ti |
| 301 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 16.00-18.00 | 6.00-8.00 | ||
| 304 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 18.00-20.00 | 8.00-10.50 | ||
| 316 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 16.00-18.00 | 10.00-14.00 | 2-3 | |
| 409L | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 10.50-11.75 | 6*C%-0.75 | ||
| 410L | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 11.00-13.50 | |||
| 430 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 16.00-18.00 | |||
| 316L | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 16.00-18.00 | |||
| 304L | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 18.00-20.00 | 12.00-15.00 | 2-3 | |
| 409 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 10.50-11.75 | 9.00-13.00 | 6*C%-0.75 | |
| 310S | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 24.00-26.00 | 19.00-22.00 | ||
| 321 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 17.00-19.00 | 9.00-13.00 | ≥5*C% |
Characteristics:
Shiny surface condition excellent workability
Applications:
It generally used in braiding the hose for bathing product and machinery. With it good flexibility,resistant to high temperature and resistant to corrosion,it used widely in many industries.
Type 304 often refers to as "18-8" (18% chromium, 8% nickel ). T-304 is the basic stainless alloy mostly commonly utilized for wire cloth weaving. It withstands outdoor exposure without rusting and resists oxidation at an elevated temperature up to 1400 Degrees Fahrenheit. Type 304 L is very similar to T-304, the difference being the reduced carbon content for better weaving and secondary welding characteristics.
Type 316: Stabilized by the addition of 2% molybdenum, T-316 is an "18-8" alloy. Type 316 has better resistance to pitting corrosion than the other chromium-nickel stainless steels where brines, sulfur-bearing water or halogen salts, such as chlorides are present. Type 316 L: Type 316 L is very similar to T-316, the difference being the reduced carbon content for better wire cloth weaving and secondary welding characteristics.
A,Thickness tolerance(JIS-G4305) Unit:mm
| (width) (Depth) |
<160 | 160-250 | 250-400 | 400-630 | 630-1000 |
| <0.10 | ±0.010 | ±0.020 | - | - | - |
| 0.10-0.16 | ±0.015 | ±0.020 | - | - | - |
| 0.16-0.25 | ±0.020 | ±0.025 | ±0.030 | ±0.030 | - |
| 0.25-0.40 | ±0.025 | ±0.030 | ±0.035 | ±0.035 | ±0.038 |
| 0.40-0.60 | ±0.035 | ±0.040 | ±0.040 | ±0.040 | ±0.040 |
| 0.60-080 | ±0.040 | ±0.045 | ±0.045 | ±0.045 | ±0.05 |
B,Width Tolerance of Steel Stirp Trimming Unit:mm
| (width) (edge status) |
<400 | 400-630 | 630-1000 |
| rolled edge | +100 | +200 | +250 |
C,Width Tolerance of Rolled Steel Strip Edge Unit:mm
| (width) (Depth) |
<160 | 160-250 | 250-400 | 400-630 | 630-1000 |
| ≤0.60 | ±0.15 | ±0.15 | ±0.30 | ±0.30 | ±0.50 |
| 0.60-0.80 | ±0.15 | ±0.15 | ±0.30 | ±0.30 | ±0.50 |
