Half Hard Temper Pure Nickel Strip Ni200 / Ni201 for Battery Cell Connector & Electronic Parts
|
|
Dettagli:
Termini di pagamento e spedizione:
|
Descrizione di prodotto dettagliata
| Standard: | ASTM B162 | Superficie: | Luminoso |
|---|---|---|---|
| Spessore: | >0.002mm | Potere oppure no: | Non |
| Purezza: | > 99,9% | Mestiere: | Forging& caldo che lamina a freddo |
| Forma: | Foil&Strip | DIN: | 2,4060 |
| Applicazione: | Batteria | Uns: | CuNi18Zn20 |

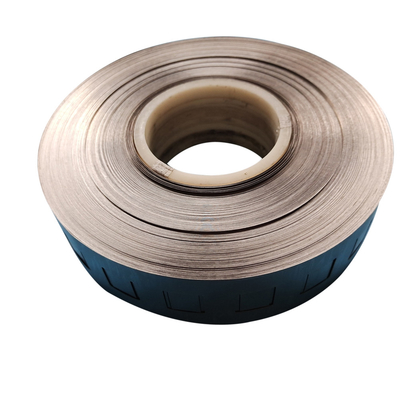

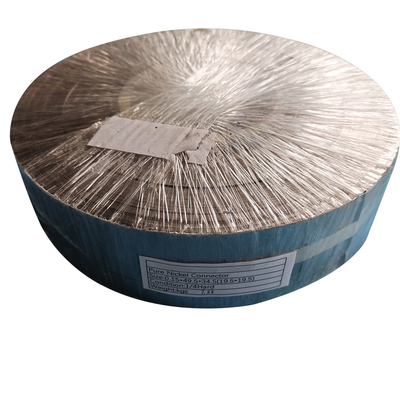

Half Hard Temper Pure Nickel Strip Ni200 / Ni201 for Battery Cell Connector & Electronic Parts
Product Description
Grade:Ni200,Ni201,N4,N6
High ductility
Excellent corrosion resistance
good mechanical strength
Pure nickel wire grade: Ni200,Ni201, N4,N6
pure wire sizes are:
Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
Bar: 10-100mm
Alloy Description
Nickel 200/201 is most widely used grade, generally specified for transistor caps, anodes for electronic tubes, leads of electronic components / Lead-in-Wires for lamps and for Wire-Mesh. Also used in strip form for various applications including Ni-Cd batteries.
Condition of Supply
Nickel 200, 201 are supplied in the following conditions:
- Cold Drawn, Special Temper.
- Cold Drawn, Annealed. Straightened and Cut Lengths.
Note:
NUS N02201 (ASTM B 162) same as N4 (GB/T 2054).
NUS N02200 (ASTM B 162) same as N6 (GB/T 2054).
Forms
Coil – Strip, Foil, Ribbon
Wire – Profile, Round, Flat, Square
rod, bar, forgings, plate, sheet
Chemical composition
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
| N4 | 99.9 | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.001 | 0.04 |
| N6 | 99.6 | 0.1 | 0.1 | 0.05 | 0.1 | 0.1 | 0.005 | 0.002 | 0.1 |
| Ni201 | 99 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
| Ni200 | 99 | 0.2 | 0.3 | 0.3 | 0.15 | / | 0.01 | / | 0.4 |
N4 / 99.9% Nickel For Nickel Battery Model Number: Ni200,Ni201,N4,N6
Pure nickel strip Nickel For Nickel Battery Standard ASTM
Testing Equirement
N02201 Nickel For Nickel Battery Thickness 0.005mm~2mm
Production Process
N4 / 99.9% Nickel For Nickel Battery Width 3.0mm ~ 1000mm
Packaging & Shipping
Pure nickel strip Nickel For Nickel Battery State Hard,1/2Hard, Soft
N02201 Nickel For Nickel Battery Surface Bright
N4 / 99.9% Nickel For Nickel Battery Sample Free to supply
Pure nickel strip Nickel For Nickel Battery Shape Foil,Strip,Sheet
3.0
